BTL-08 Spiro ekg

Skip Navigation Links
EKG
L LINE M LINE S LINE
CARDIO POINT SPIROMETRIE

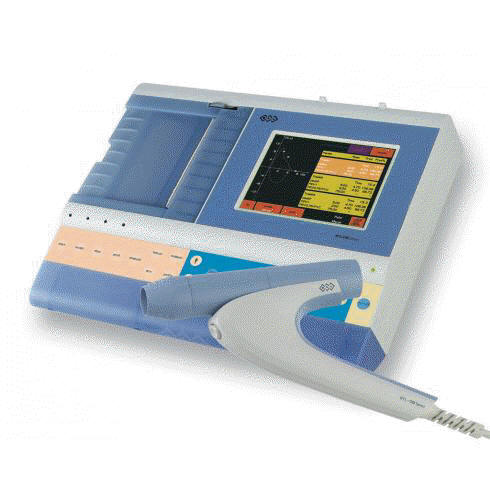

Portable desktop spirometer
The desktop spirometer BTL-08 Spiro Pro guarantees comfortable and professional operation thanks to its large colour touch screen, its possibility to use a thermal or external office printer and finally its powerful diagnostics including its automatic interpretation.

  • FVC, SVC, MVV test profiles
  • Bronchoprovocative & bronchodilatation tests
  • Wide range of clinicalparameters and predictive values
  • Sterilizable spirometry sensors & mouthpieces
  • Automatic interpretation (Enright, BTS, ATS
C08SP.002v100
  •  Disinfectable sensors and plastic mouthpieces in standard accessories
  • Integrated printer with 112mm paper width Cheap print on external laser printers
  • Large colour touch screen for simple and effective operation
  • Real-time display of flow-volume and volume-time graphs
  • Multiple curves overlaying in flow-volume graph
  • Automatic best test selection with manual correction
  • Bronchoprovocative & bronchodilation tests
  • Paediatric encouragement
  • Automatic interpretation (Enright, BTS, ATS)
  • Automatic BTPS correction
  • Configurable output protocol
  • Forced spirometry: FVC, Best FVC, FEV0.75, FEV1, Best FEV1, FEV3, FEV6, PEF, FEV0.75/FVC, FEV1/FVC, FEV3/FVC, FEV6/FVC, FEV0.75/SVC, FEV1/SVC, FEV3/SVC, FEV6/SVC, PIF, FIVC, FIV1, MEF75, MEF50, MEF25, FEF75, FEF50, FEF25, MMEF, FET25, FET50, MIF75, MIF50, MIF25, PEFT, FIF50, FEF50/FIF50, FEF50/SVC, FEV0.75/FEV6, FEV1/FEV6, FIV1/FIVC, VEXT,
  • Lung age
  • Relaxed spirometry: SVC, ERV, IRV, TV, IC, IVC
  • Maximum voluntary ventilation: MVV, MVVf, MRf
  • Predictive values: ECCS/ERS 1993, ECCS 1983, NHANES III, Knudson 1983, Knudson 1976, Roca 1986, CRAPO 1981, ITS, Perreira – Brazil, LAM, Gore – Australia, Zapletal 1977

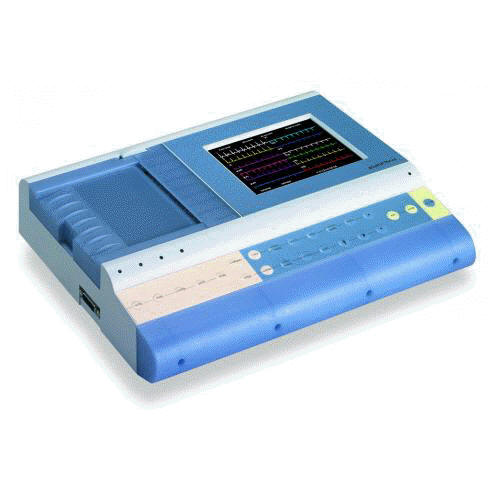

    The spirometry module also available for selected BTL-08 ECGs (BTL-08 LC Plus, BTL-08 LC, BTL-08 LT Plus, BTL-08 LT, and BTL-08 MT Plus)

optional accessories

Antibacterial filter  for BTL-08 Spiro   no: C08SP.013
Carry case  for BTL-08 Spiro & BTL-08 Spiro Pro upgrade   no: C08SP.021v100
 Disinfection - 2 litres for BTL-08   no: C08SP.018
Nnoseclip for BTL-08 Spiro   no: C08SP.019
Paper mouthpiece  for BTL-08    no: C08SP.012
Plastic mouthpiece  for BTL-08 Spiro   no: C08SP.011v100
Reusable sensor with plastic mouthpiece  for BTL-08   no C08SP.015v100
Thermal paper - 112mm  for BTL-08 ECG M line & BTL-08 Spiro, roll 25m   no: C008.105v120
Trolley for BTL-08 Spiro Pro System   no: P5002.125v100
